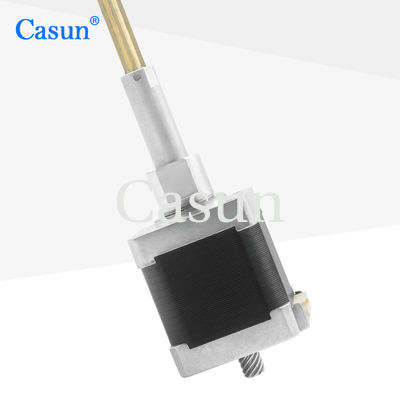

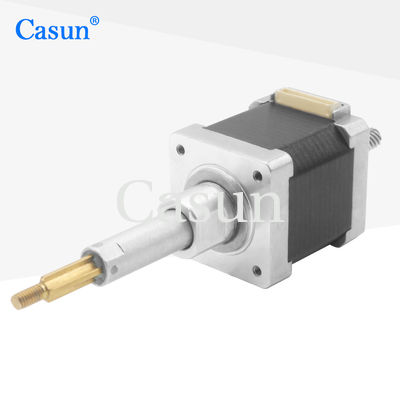

NEMA 14 Captive Step Motor 41mm Body 1.0A For Precision Positioning

NEMA 14 Captive Step Motor 41mm Body 1.0A For Precision Positioning

Nazwa marki:	Casun
Numer modelu:	P35SHD0807-C55L
MOQ:	1 szt
Cena:	$26-$31
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Minimalna siła napędu:

0,2 kg przy 600 pps

Aktualny:

1,0 A

Długość silnika:

41 mm

udar:

Długość 55 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 38x29x14m

Podkreślić:

Precision positioning Captive Step Motor

41mm Captive Step Motor

1.0A Captive Step Motor

Opis produktu

The NEMA 14 linear stepper motor no additional transmission mechanism is required, reducing energy loss and system complexity.

Precision positioning, laboratory equipment, medical equipment.

Features:

Bipolar or unipolar versions available
Dealers wanted!
Specializing in tailor-made services is our expertise
Contract-based manufacturing services are welcome
Every stepper motor model is adaptable to various applications

Appearance

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	28 mm
Number of Phase	2 Phase
Rated Current	0.42 A
minimal thrust	1kg at 300pps
Resistance	4.5 ohm
Inductance	5.8 mH
Rotor Inertia	12 g.cm²
Motor weight	0.35 kg
Number of leads	4
Connection	Bipolar

Torque Curves

NEMA 14 Captive Step Motor 41mm Body 1.0A For Precision Positioning 2

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
