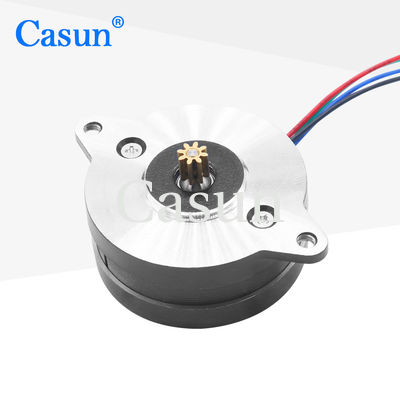

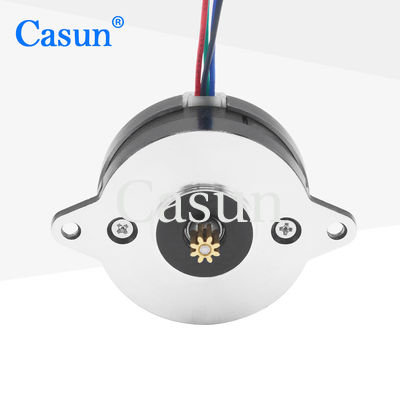

1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor

1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor

Nazwa marki:	Casun
Numer modelu:	36SHD4302-7AH
MOQ:	1 szt
Cena:	$4.14-$6.98
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

90mNm

Aktualny:

0,3a

Długość silnika:

15,4 mm

Wał:

Wał zębaty o długości 7 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

1.8 Degree SMT Stepper Motor

90mN.m SMT Stepper Motor

6.6V SMT Stepper Motor

Opis produktu

Stepper motors can respond very quickly to commands, making them very useful in applications that require quick start and stop.

Provide different configuration options, such as different step angles, lengths, and torque levels.

Features:

Established in China for 12 years, we have served more than 800 customers
Expert in drivetrain solutions
Delivering high torque and accuracy
Backed by a 10-year warranty for your confident purchase
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	90 mN.m
Resistance	23 ohm
Inductance	10 mH
Rotor Inertia	4 g-cm²
Motor weight	0.06 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters,

installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
