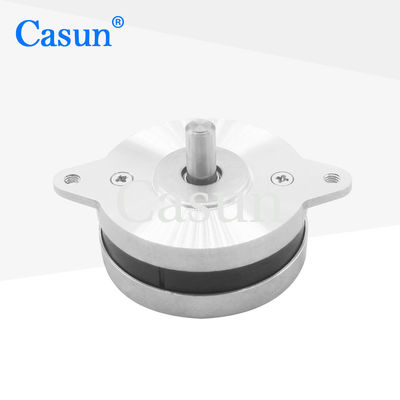

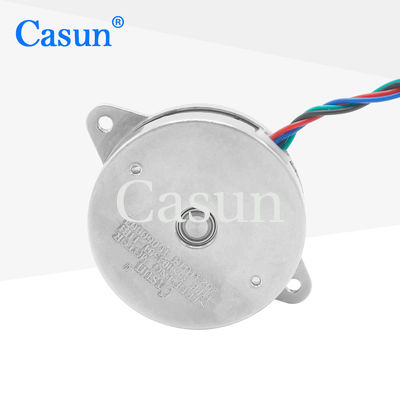

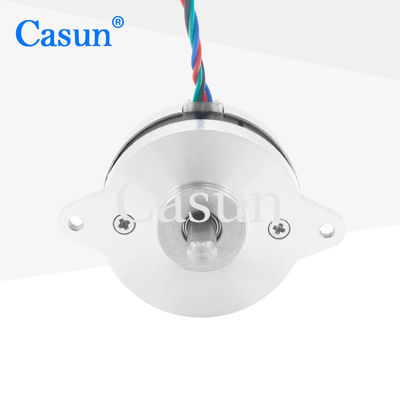

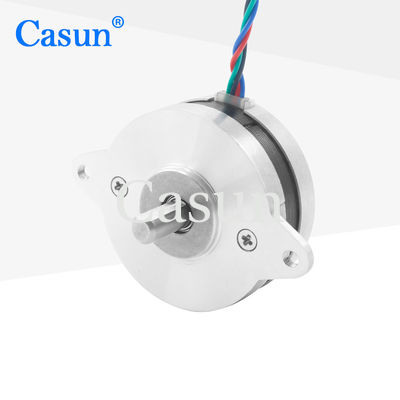

1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor

1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor

Nazwa marki:	Casun
Numer modelu:	36SHD4301-11B1
MOQ:	1 szt
Cena:	$4.14-$6.98
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

70mNm

Aktualny:

0,3a

Długość silnika:

15,4 mm

Wał:

Długość 11mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

1.8 Degree SMT Stepper Motor

90mN.m SMT Stepper Motor

6.6V SMT Stepper Motor

Opis produktu

They have high stiffness and good torque characteristics, which enables them to maintain good positioning accuracy even under load.

Provide different configuration options, such as different step angles, lengths, and torque levels.

Features:

Our engineering team will reach out within 48 hours to deliver the optimal solution
Expert in drivetrain solutions
Delivering high torque and accuracy
Provide bespoke services
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.3 A
Holding Torque	70 mN.m
Resistance	15.5 ohm
Inductance	7 mH
Rotor Inertia	4 g-cm²
Motor weight	0.06 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters,

installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
