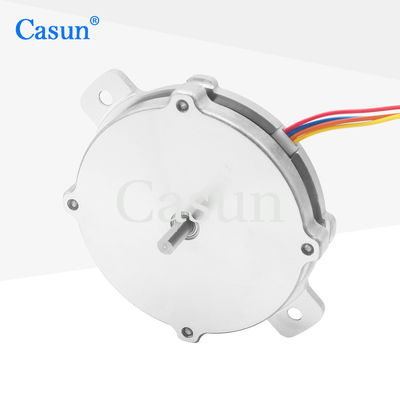

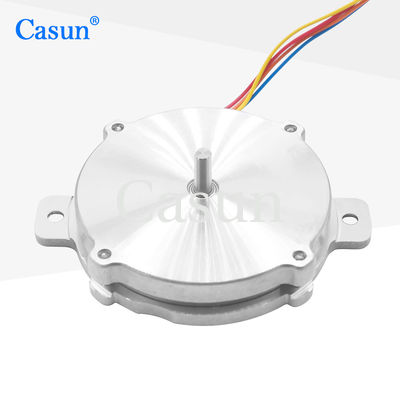

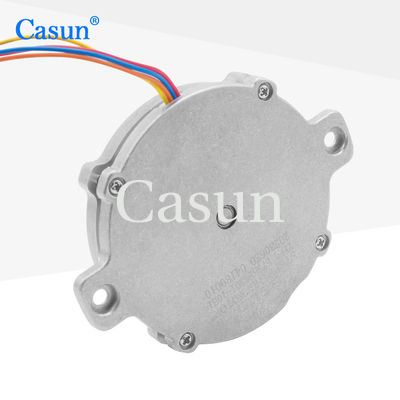

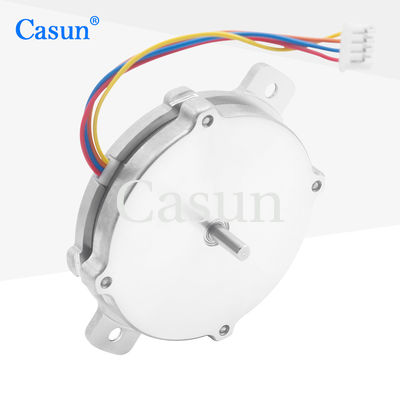

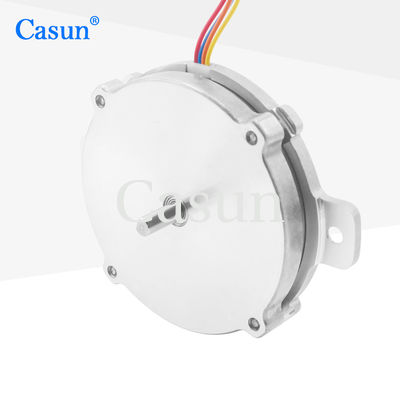

Nema 23 Flat Stepper Motor 57×57×13mm 1.3A For YAMAHA

Nema 23 Flat Stepper Motor 57×57×13mm 1.3A For YAMAHA

Nazwa marki:	Casun
Numer modelu:	57SHY4301-10B1
MOQ:	1 szt
Cena:	$9.68-13.46
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Kąt kroku:

1,8°

Ciało:

13 mm

Aktualny:

1.2A

Trzymanie momentu obrotowego:

125mNm

Wał:

Płaski wał frezujący o długości 10 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

57×57×13mm Flat Stepper Motor

YAMAHA Flat Stepper Motor

1.3A Flat Stepper Motor

Opis produktu

Due to fewer internal voids, the heat dissipation and conduction performance are better.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Features:

Bipolar or unipolar versions available
Each model of our stepper motors is designed to fit various application scenarios
Available in single or double shaft versions
CE and RoHS approved
We have been established in China for 12 years and have served over 800 clients

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	1.2A
Holding Torque	125 mN.m
Resistance	1.8 om
Inductance	1.2 mH
Rotor Inertia	20 g-cm²
Motor weight	0.08 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Motor Length	Current	Holding Torque

57SHY4001	9.6mm	0.8A	60mN.m

57SHY4301	13mm	1.2A	125mN.m

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Nema 23 Flat Stepper Motor 57×57×13mm 1.3A For YAMAHA 1

Please click the "Get a quote" button below to tell us your requirements.
