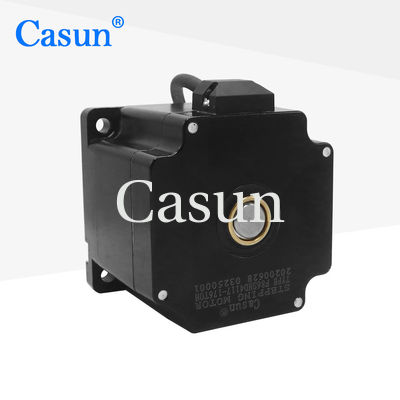

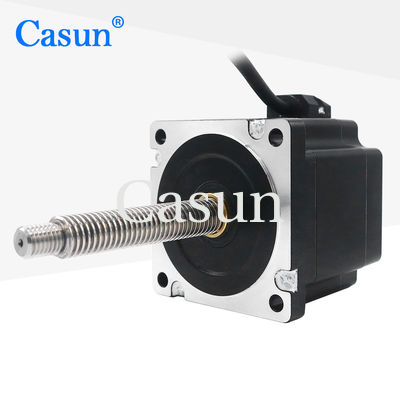

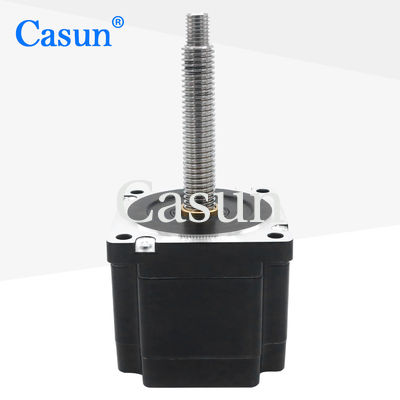

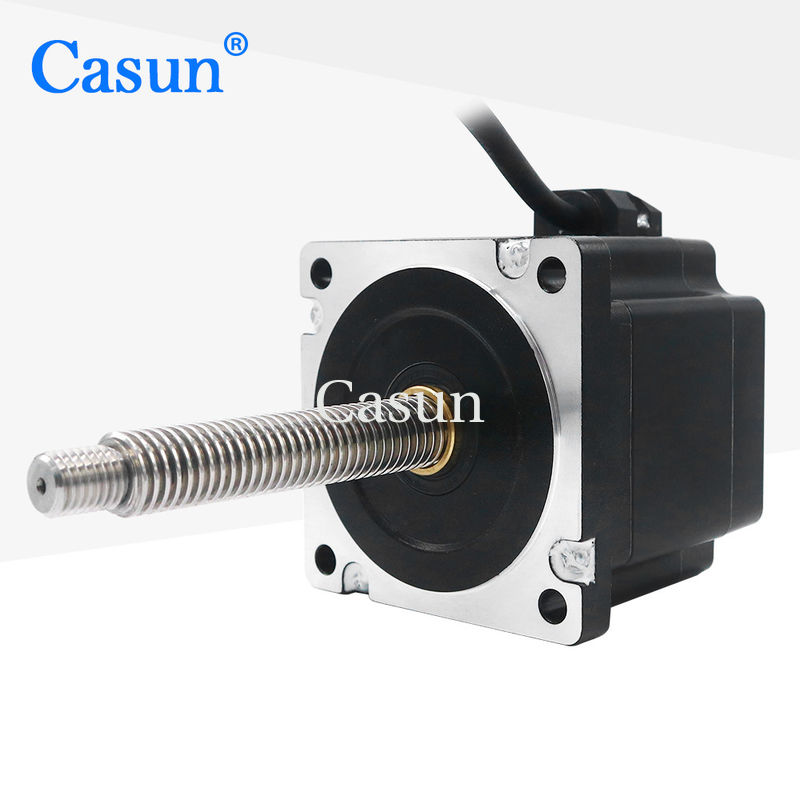

Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof

Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof

Nazwa marki:	Casun
Numer modelu:	F86SHD4117-176TOH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

3,8 Nm

Aktualny:

1,3A

Długość silnika:

76 mm

Ołów:

Tr15,88×2,54

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

Waterproof NonCaptive Hybrid Linear Stepper Motor

Customization NonCaptive Hybrid Linear Stepper Motor

76mm NonCaptive Hybrid Linear Stepper Motor

Opis produktu

The 86mm Stepper motors can respond very quickly to commands, providing fast acceleration and deceleration, which is very useful for applications that require quick adjustment.

It has been widely used in industrial applications that require precision, stability, and fast motion.

Features:

Both high torque and accuracy
For electronic industrial equipment and high-tech industry equipment
We offer customizable services and warmly welcome contract manufacturing
Each model of our stepper motor is suitable for diverse applications
High torque and high precision

Motor Specifications

Step Angel	1.8 °
Fram Size	86 mm
Number of Phase	2 Phase
Rated Current	1.3 A
Holding Torque	3.8 N.m
Resistance	9.2 ohm
Inductance	71 mH
Rotor Inertia	1760 g-cm²
Motor weight	2.5 kg
Number of leads	4
Connection	Bipolar

Appearance

Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof 0

Dimensions

Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
