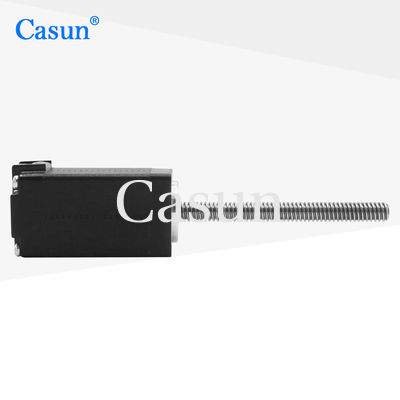

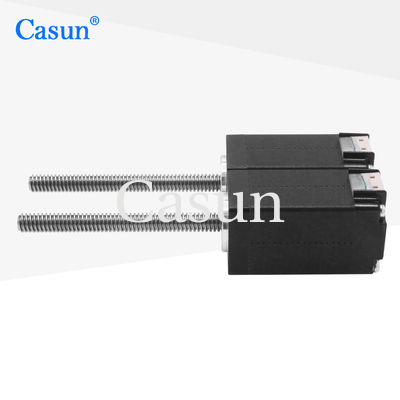

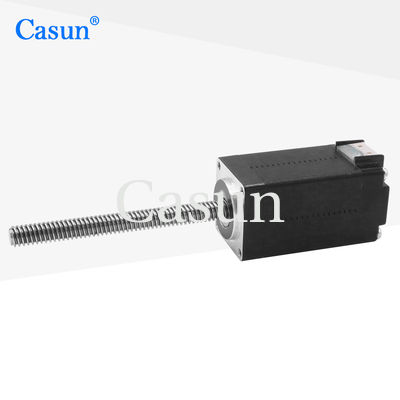

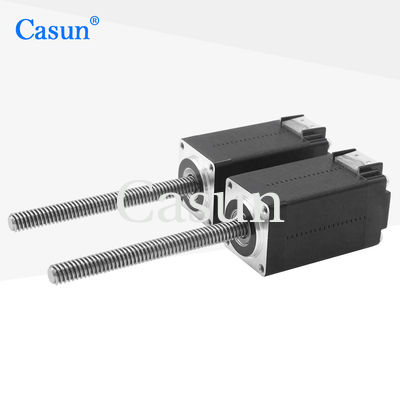

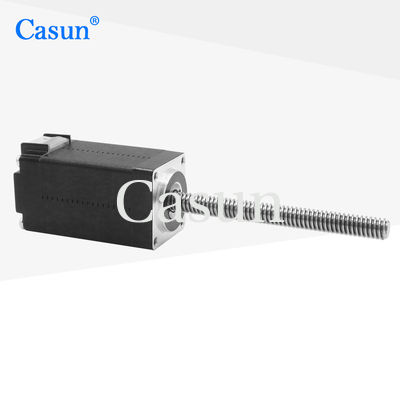

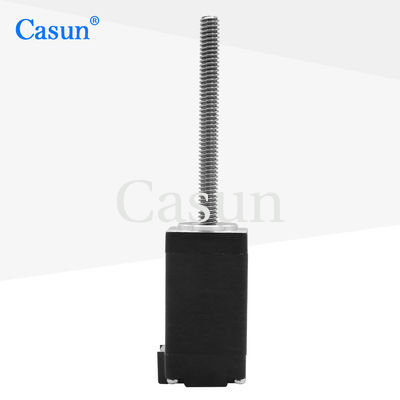

Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment

Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment

Nazwa marki:	Casun
Numer modelu:	20SHD0250-52NTV2
MOQ:	1 szt
Cena:	$13-$13.5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Aktualny:

0,5 A

Krok anioła:

1,8°

śruba prowadząca:

Tr5×2

Faza:

Długość silnika:

38 mm

Trzymanie momentu obrotowego:

32mNm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 38x29x14m

Podkreślić:

32mN.m Non Captive Motor

4 wires Non Captive Motor

Nema 8 Non Captive Motor

Opis produktu

The stepper motor converts rotational motion into linear motion and achieves precise linear positioning through screws.

Precision positioning: such as laboratory equipment, optical equipment, precision measuring instruments, etc.

Features:

Contract-based manufacturing services are welcome
Hybrid stepper construction
Available in single or double shaft versions
With 12 years of operation in China, we have served over 800 customers
Dealers are actively sought after!

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	20 mm
Number of Phase	2 Phase
Rated Current	0.6Amp
Holding Torque	32mN.m
Resistance	9.0 ohm
Inductance	3.2mH
Rotor Inertia	3.5g-cm²
Motor weight	0.08kg
Lead Screw	Tr5X2
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Body Length	Diameter of Screw	Pitch	Length of Screw
20 mm 34 mm 40 mm 48 mm 60 mm	5	2	20-1000 mm
		8
	6.35	1.27
		3.175
		6.35
	6.5	3
		6.35
	8	1
		2
		4
		8
		12

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment 1

Please click the "Get a quote" button below to tell us your requirements.
