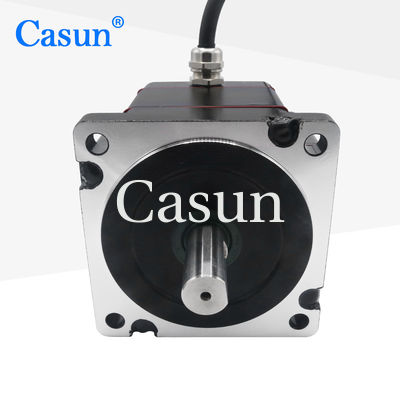

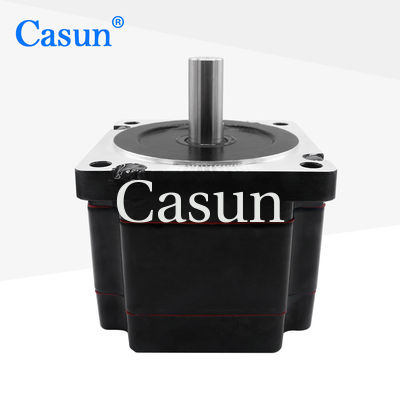

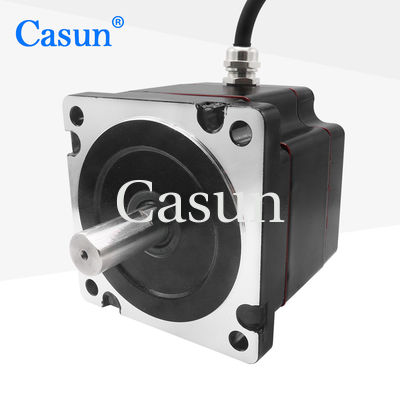

Casun Hybrid Waterproof Stepper Motor NEMA 23 51mm Body 1.16N.M For Smart Device

Casun Hybrid Waterproof Stepper Motor NEMA 23 51mm Body 1.16N.M For Smart Device

Nazwa marki:	Casun
Numer modelu:	57SHD4228-21H
MOQ:	1 szt
Cena:	$9.49-$14
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

1100mNm

Aktualny:

2,5A

Długość silnika:

51mm

Wał:

Okrągły wał o długości 21 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

NEMA 23 Waterproof Stepper Motor

1.16N.M Waterproof Stepper Motor

Casun Hybrid Waterproof Stepper Motor

Opis produktu

The 57mm Hybrid Stepper Motor can precisely control the rotation angle, suitable for fields that require high-precision control

Millisecond level response speed, suitable for situations with high speed response requirements

Features:

Versions in unipolar or bipolar are offered.
Hybrid stepper building
Available in variations with a single or double shaft
Expert manufacturing research and development
Upon request, modifications

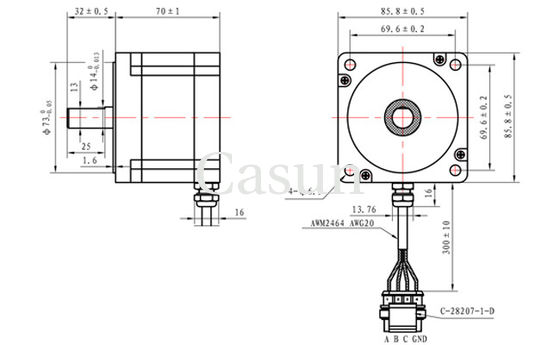

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.5 A
Holding Torque	1100 mN.m
Resistance	1.15 ohm
Inductance	3.3 mH
Rotor Inertia	72 g-cm²
Motor weight	0.62 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
