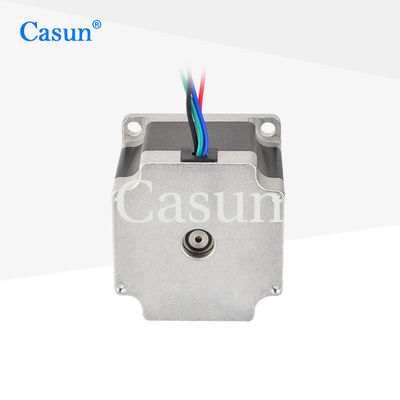

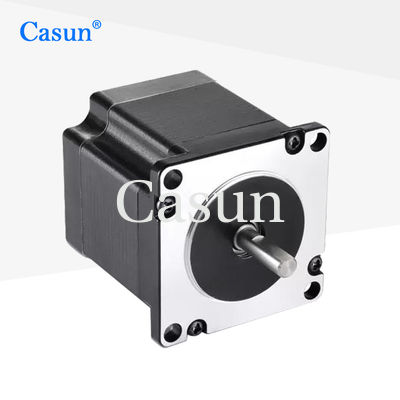

CNC Machine Nema 23 Stepper Motor High Torque Hybrid Dc Motors With ROHS CE ISO

CNC Machine Nema 23 Stepper Motor High Torque Hybrid Dc Motors With ROHS CE ISO

Nazwa marki:	Casun
Numer modelu:	57SHD4425-21C
MOQ:	1 szt
Cena:	$3.14-$5.8
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

1,2 Nm

Aktualny:

1.8A

Długość silnika:

54 mm

Wał:

Płaski wał frezujący o długości 21 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

high torque Nema 23 stepper motor

CNC machine Nema 23 stepper motor

ROHS Stepper Motor High Torque

Opis produktu

Due to the lack of complex mechanical conversion components, maintenance is simple and the service life is long.

Suitable for various applications, such as automation equipment, precision positioning systems, robots, electronic devices, etc.

Features:

High torque and high precision
Professional drivetrain solution specialist
Our engineers will be in touch within 48 hours to provide the best solution
Every stepper motor model is adaptable to various applications
Provide bespoke services

Appearance

CNC Machine Nema 23 Stepper Motor High Torque Hybrid Dc Motors With ROHS CE ISO 0

Dimensions

CNC Machine Nema 23 Stepper Motor High Torque Hybrid Dc Motors With ROHS CE ISO 1

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	1.8 A
Holding Torque	1.2 N.m
Resistance	0.9 ohm
Inductance	2.5 mH
Rotor Inertia	300 g-cm²
Motor weight	0.7 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
20SHD0001-20	18	1.8	20mm	Round Shaft	0.6A
20SHD0101-20	30	1.8	20mm	Round Shaft	0.8A
20SHD0201-20	32	1.8	20mm	Round Shaft	0.6A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
