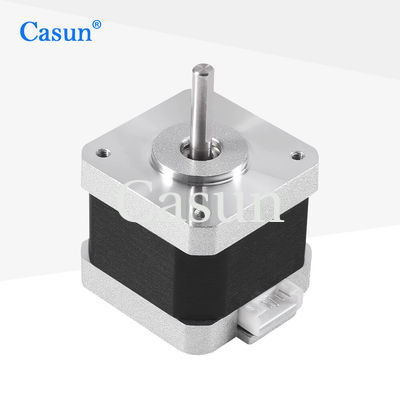

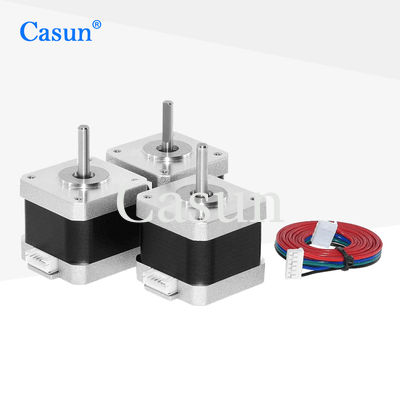

8V NEMA 17 Stepper Motor 0.8A 40mm 2 Phase 1.8 Degree For 3D Printer

8V NEMA 17 Stepper Motor 0.8A 40mm 2 Phase 1.8 Degree For 3D Printer

Nazwa marki:	Casun
Numer modelu:	42SHD0227-24B
MOQ:	1 szt
Cena:	$2.32-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

410mNm

Aktualny:

0,8A

Długość silnika:

40mm

Wał:

Długość 24mm

Woltaż:

8 V

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

0.8A NEMA 17 Stepper Motor

2 Phase NEMA 17 Stepper Motor

40mm NEMA 17 Stepper Motor

Opis produktu

0.8A Motori per stadi 40mm 2 Phase 1.8degree Hybrid 8V NEMA 17 Stepper Motor

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Appearance

8V NEMA 17 Stepper Motor 0.8A 40mm 2 Phase 1.8 Degree For 3D Printer 0

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	40 mm
Number of Phase	2 Phase
Rated Current	0.8 A
Holding Torque	410 mN.m
Resistance	10 ohm
Inductance	15 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
