2 phase NEMA 17 Stepping Motor 1.0A 0.45N.m for Computer Peripherals

2 phase NEMA 17 Stepping Motor 1.0A 0.45N.m for Computer Peripherals

Nazwa marki:	Casun
Numer modelu:	42SHD0238-20B
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

450mNm

Aktualny:

1,0 A

Długość silnika:

40mm

Wał:

Frezowanie płaskiego wału o długości 20 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

0.45N.m NEMA 17 Stepping Motor

Computer Peripherals NEMA 17 Stepping Motor

Opis produktu

It can be adjusted by controlling the frequency of the input pulse to achieve wide range speed control from extremely low speed to high speed.

Automated production lines, robotics technology, precision instruments, medical equipment, computer peripherals, etc.

Features:

Bipolar or unipolar versions available
Specialist in professional drivetrain solutions
Available in single or double shaft versions
CE and RoHS approved
Our engineers will contact you within 48 hours to provide the best solution

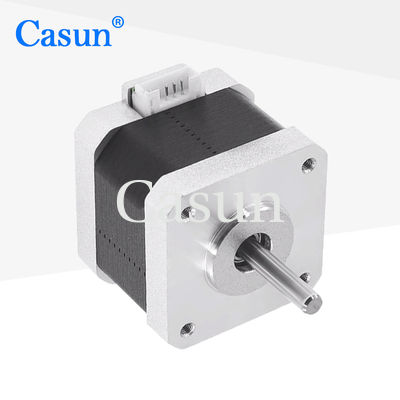

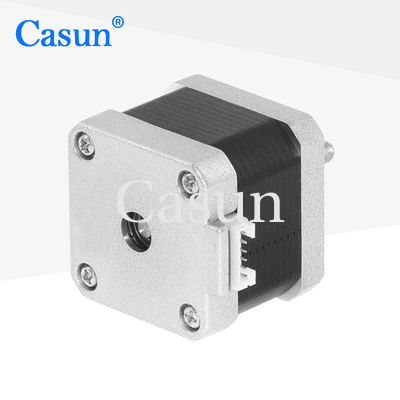

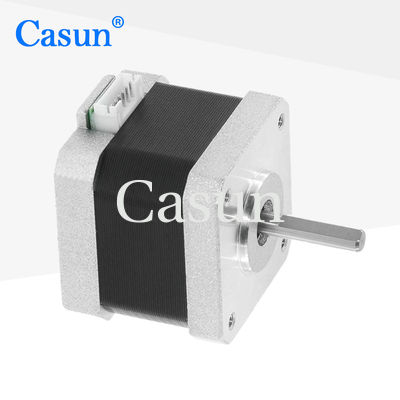

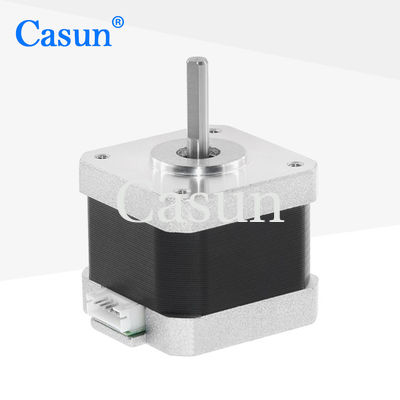

Appearance

2 phase NEMA 17 Stepping Motor 1.0A 0.45N.m for Computer Peripherals 0

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	450 mN.m
Resistance	5.0 ohm
Inductance	10.0 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
