3 Phase 1.2 Degree Nema 17 Hybrid Stepper Motor 42x42x40mm Dc Motors

3 Phase 1.2 Degree Nema 17 Hybrid Stepper Motor 42x42x40mm Dc Motors

Nazwa marki:	Casun
Numer modelu:	42SHD0201-24
MOQ:	1 szt
Cena:	$4-$8
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

300mNm

Aktualny:

0,8A

Długość silnika:

40mm

Wał:

Długość 24mm

Woltaż:

12 V

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

3 phase nema 17 stepper motor

42x42x40mm nema 17 stepper motor

1.2 degree nema 17 stepper motor

Opis produktu

0.8A Motori per stadi 40mm 3 Phase 1.2degree Hybrid 12V NEMA 17 Hybrid Stepper Motor

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

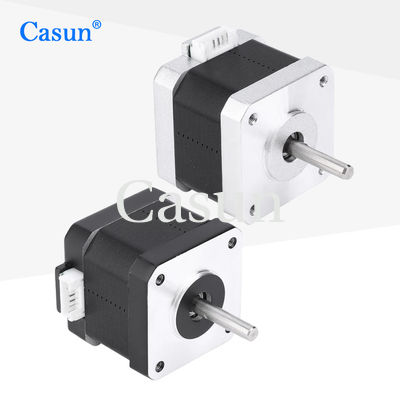

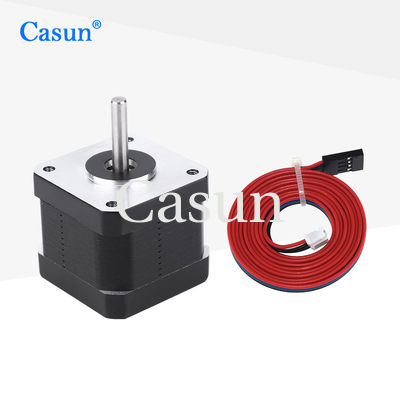

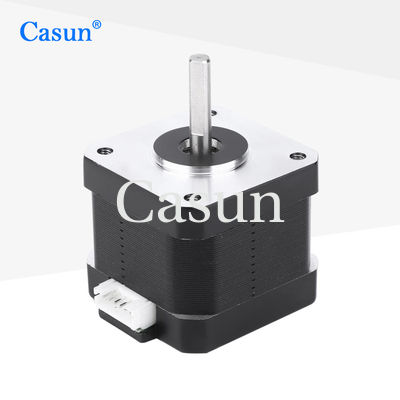

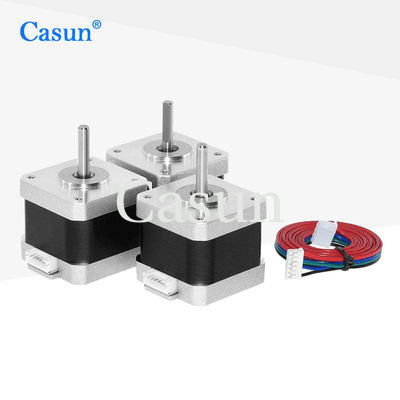

Appearance

3 Phase 1.2 Degree Nema 17 Hybrid Stepper Motor 42x42x40mm Dc Motors 0

Dimensions

Motor Specifications

Step Angel	1.2°
Fram Size	40 mm
Number of Phase	3 Phase
Rated Current	0.8 A
Holding Torque	300 mN.m
Resistance	14 ohm
Inductance	14 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	0
Connection	unipolar

Operating Specifications

Step Angle: 1.2°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
