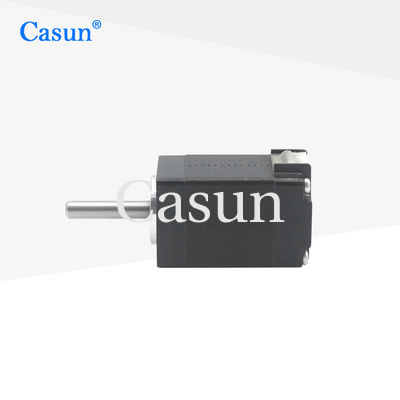

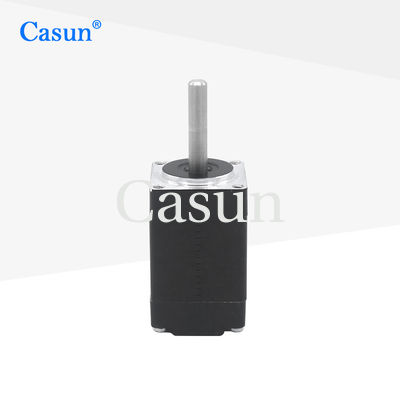

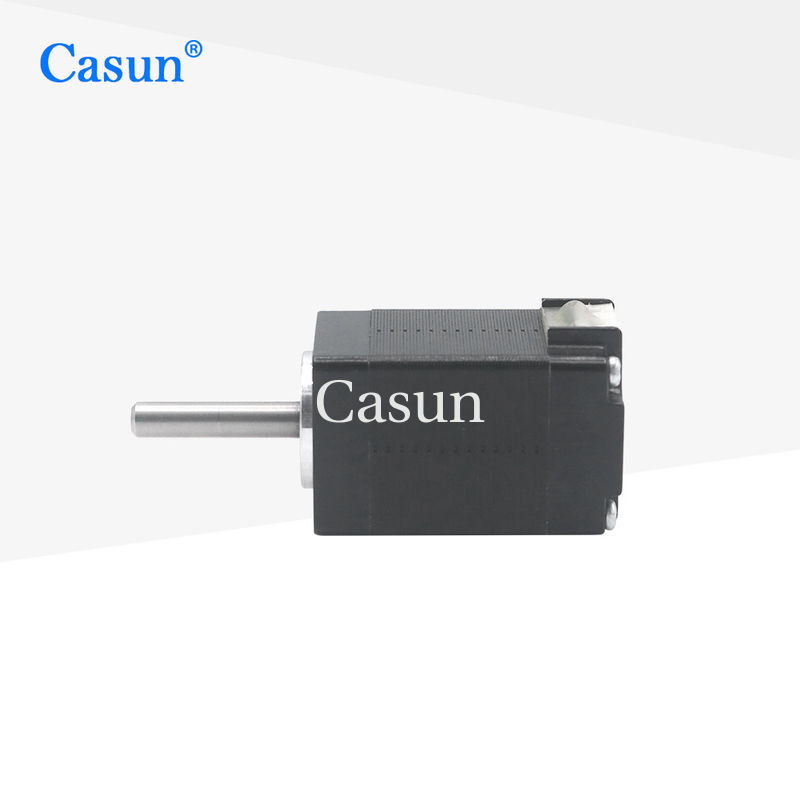

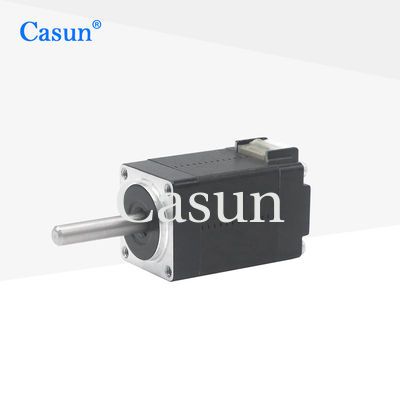

Mini Motor NEMA 11 20×20×30mm 0.6A with Office Equipment

Mini Motor NEMA 11 20×20×30mm 0.6A with Office Equipment

Nazwa marki:	Casun
Numer modelu:	20SHD0003-20
MOQ:	1 szt
Cena:	$5.94-$8.6
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

20mNm

Aktualny:

0,6A

Długość silnika:

30mm

Wał:

Okrągły wał o długości 20 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

Office Equipment NEMA 11

20×20×30mm NEMA 11

Mini Motor NEMA 11

Opis produktu

The resolution can be further improved through subdivision driving technology, which is suitable for applications that require high-precision positioning.

The control signal of stepper motor is simple and easy to program and control through microcontroller or PLC.

Features:

High accuracy and torque
Offer custom services
Available in single or double shaft versions
Our products deliver high torque and precision
With 12 years of experience in China, we have served over 800 satisfied customers

Motor Specifications

Step Angel	1.8 °
Fram Size	20 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	20 mN.m
Resistance	6.5 ohm
Inductance	2.0 mH
Rotor Inertia	2 g-cm²
Motor weight	0.06 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
