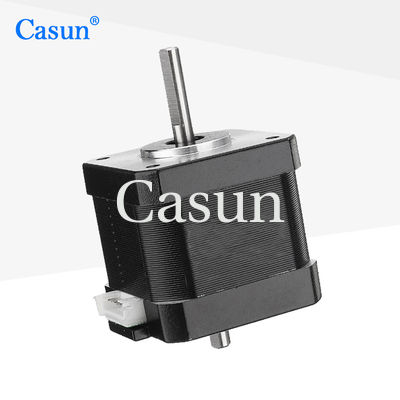

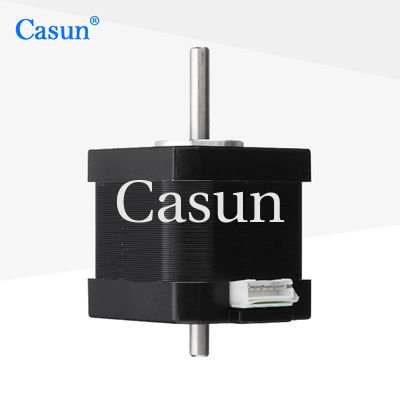

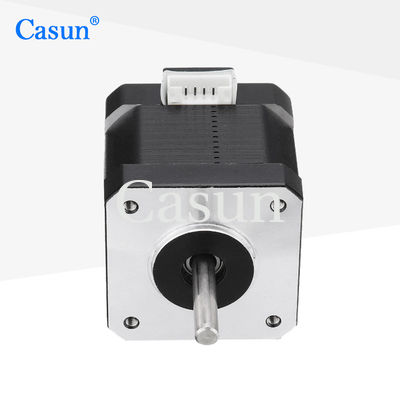

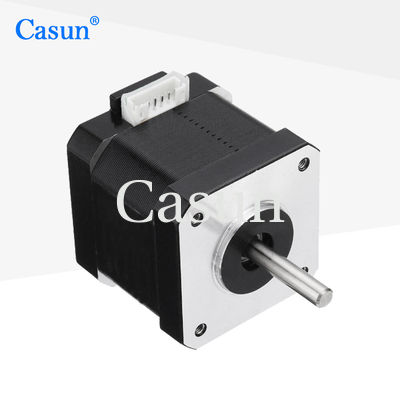

42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft For 3D Printer

42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft For 3D Printer

Nazwa marki:	Casun
Numer modelu:	42SHD0217-20SH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

450mNm

Aktualny:

1,5a

Długość silnika:

40mm

Wał:

Podwójny wał o długości 20 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

Stepping Motor 1.5A

Dual Shaft Stepping Motor

Stepping Motor For 3D Printer

Opis produktu

The dual output shaft design can balance the load, reduce vibration, and improve operational stability.

It is possible to install loads at both ends of the motor simultaneously, which improves the compactness and flexibility of the system.

Features:

Expertise in professional research and development manufacturing
For high-tech industry and electronic industry equipment
Professional drivetrain solution specialist
Established in China for 12 years and has served more than 800 customers
Ten-year warranty and purchase with confidence

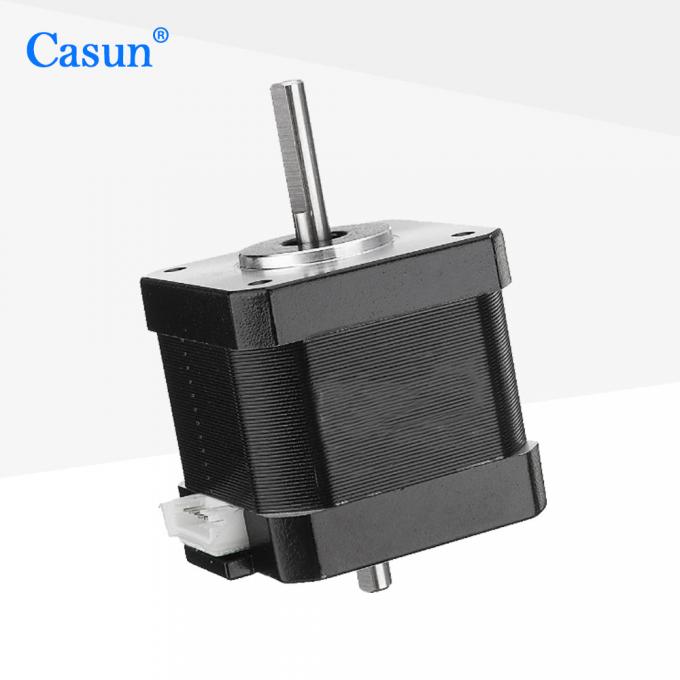

Appearance

42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft For 3D Printer 0

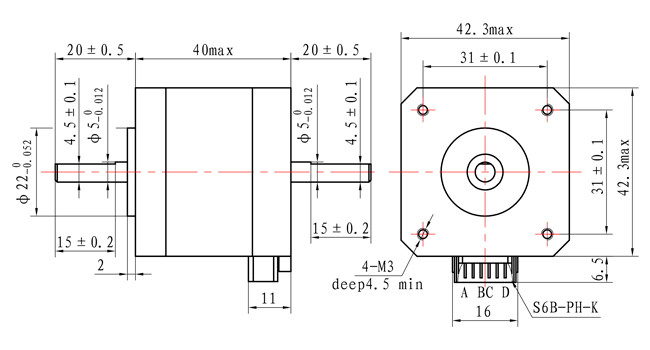

Dimensions

42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft For 3D Printer 1

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	450 mN.m
Resistance	2.2 ohm
Inductance	5.0 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
