3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC

3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC

Nazwa marki:	Casun
Numer modelu:	57SHD4932-20B
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

3200mNm

Aktualny:

3,5A

Długość silnika:

T/T, akredytywa, D/A, D/P, Western Union, MoneyGram

Wał:

Frezowanie płaskiego wału o długości 20 mm

Średnica wału:

8mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

57x57x100mm NEMA 23 Stepping Motor

3.0A NEMA 23 Stepping Motor

3.2N.m NEMA 23 Stepping Motor

Opis produktu

It can usually run for a long time without maintenance and is suitable for applications that work for a long time.

In CNC machine tools, stepper motors can achieve precise positioning and fast response, improving the machining accuracy and efficiency of the machine tool.

Features:

High torque and high precision
We offer custom services and accept contract manufacturing
Professional drivetrain solution specialist
Our engineers will be in touch within 48 hours to provide the best solution
Every stepper motor model is adaptable to various applications

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	3.5 A
Holding Torque	3200 mN.m
Resistance	2.1 ohm
Inductance	7.5 mH
Rotor Inertia	650 g-cm²
Motor weight	1.3 kg
Number of leads	4
Connection	Bipolar

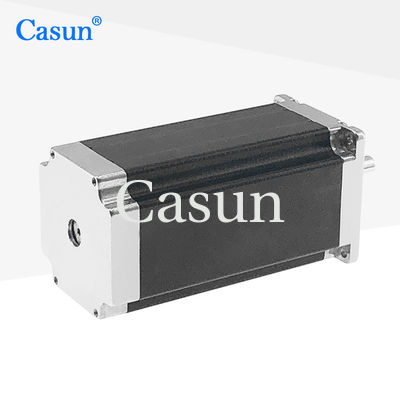

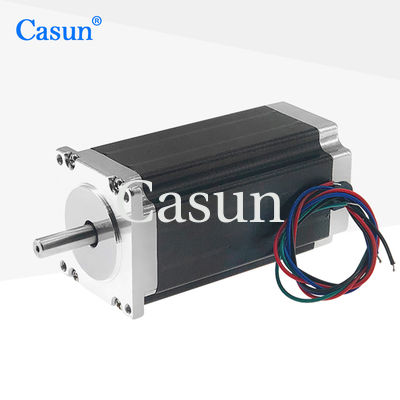

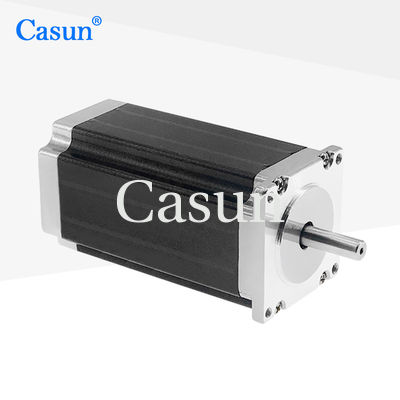

Appearance

3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC 0

Dimensions

3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.

Tagi:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

57x57x100mm NEMA 23 Stepping Motor
