NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine

NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine

Nazwa marki:	Casun
Numer modelu:	57SHD4972-21B
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

3.0N.m

Aktualny:

4,0A

Długość silnika:

T/T, akredytywa, D/A, D/P, Western Union, MoneyGram

Wał:

Płaski wał frezujący o długości 21 mm

Średnica wału:

8mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

57x57x112mm NEMA23 Stepper Motor

3.0N.m NEMA23 Stepper Motor

Electronic Embroidery Machine NEMA23 Stepper Motor

Opis produktu

In the field of robotics, stepper motors can achieve precise motion control, improving the flexibility and stability of robots.

Stepper motors do not experience speed fluctuations at low speeds.

Features:

High torque and high precision
We offer custom services and accept contract manufacturing
Professional drivetrain solution specialist
With a 12-year history in China, we have assisted over 800 clients
Distributors are sought after!

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	3.5 A
Holding Torque	3000 mN.m
Resistance	1.3 ohm
Inductance	6.0 mH
Rotor Inertia	800 g-cm²
Motor weight	1.7 kg
Number of leads	4
Connection	Bipolar

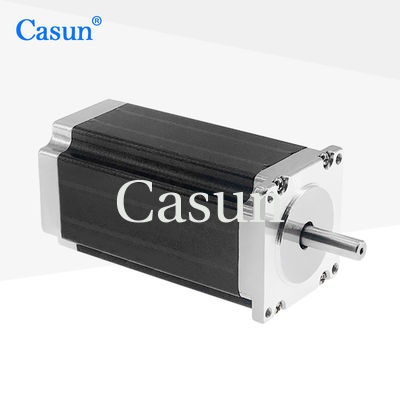

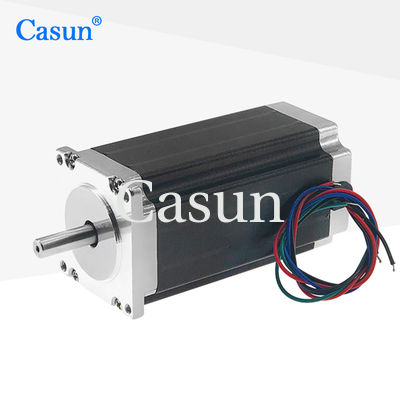

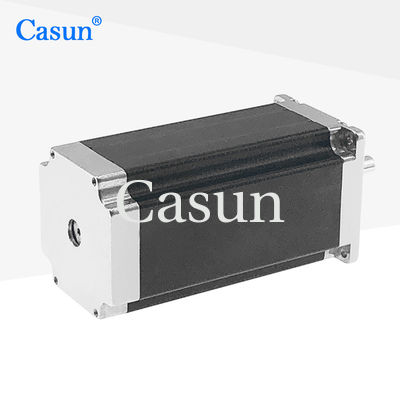

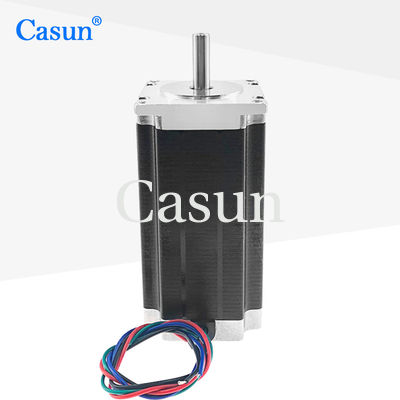

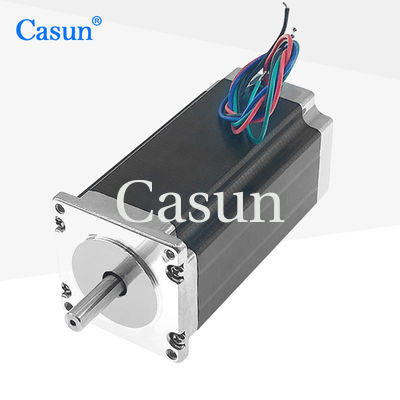

Appearance

NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine 0

Dimensions

NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.

Tagi:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

57x57x112mm NEMA23 Stepper Motor
