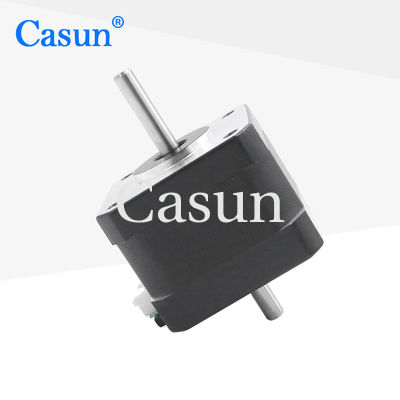

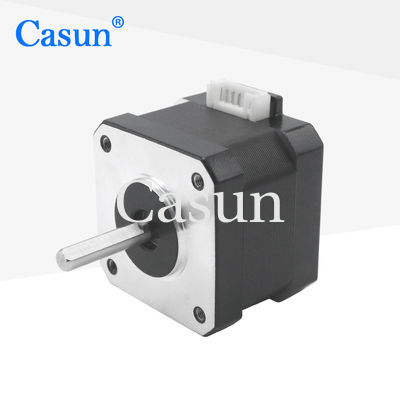

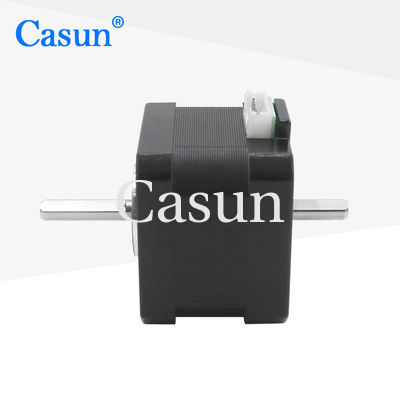

1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance

1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance

Nazwa marki:	Casun
Numer modelu:	42SHD0079-24SH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

320mNm

Aktualny:

1,33A

Długość silnika:

34 MM

Wał:

Podwójny wał o długości 20 mm

Napięcie znamionowe:

3,6 V.

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

Medical Equipment NEMA 17 Stepper Motor

Dual Shaft NEMA 17 Stepper Motor

1.8 Degree NEMA 17 Stepper Motor

Opis produktu

Dual axis stepper motors can adapt to various applications, from simple linear motion to complex multi axis motion control.

The dual axis design can better achieve dual axis synchronous control and improve the positioning accuracy of the system.

Features:

Our engineers will contact you within two days to offer the most effective solution
Customized service offerings
Available in single or double shaft versions
Contract manufacturing is a service we offer
We specialize in providing professional drivetrain solutions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.33 A
Holding Torque	320 mN.m
Resistance	2.7 ohm
Inductance	4.2 mH
Rotor Inertia	38 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

Appearance

1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance 0

Dimensions

1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
