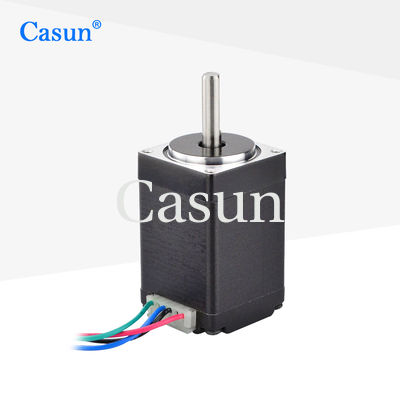

100mN.m Hybrid Stepper Motor 1.5A 3.83V Stepping Motor For CNC ATM Robot Arm

100mN.m Hybrid Stepper Motor 1.5A 3.83V Stepping Motor For CNC ATM Robot Arm

Nazwa marki:	Casun
Numer modelu:	28SHD0405-15B
MOQ:	1 szt
Cena:	$23.94-$28.34
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Kąt kroku:

1,8°

Napięcie znamionowe:

3,83 V

Moment hamujący:

5mNm

Prąd znamionowy:

1,5a

Trzymanie momentu obrotowego:

100mNm

Masa:

0,16 kg

Szczegóły pakowania:

Karton: 38x29x14m

Podkreślić:

1.5A Hybrid Stepper Motor

CNC Hybrid Stepper Motor

3.83V Hybrid Stepper Motor

Opis produktu

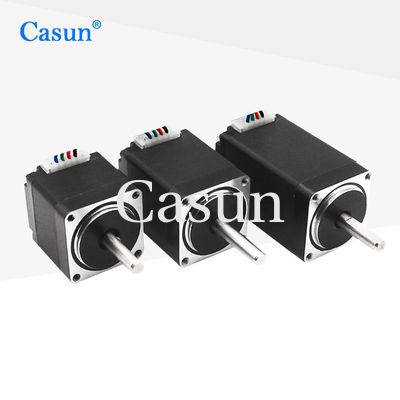

Nema11 28X28MM Hybrid Stepper Motor

The 28mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Rated voltage	3.83 V DC
Number of Phase	2 Phase
Rated Current	1.5Amp
Holding Torque	100mN.m
Detent torque	5mN.m
Phase resistance	2.7ohm±10%(At 20℃)
Phase inductance	1.9mH±20%(1kHz rms)
Rotor inertia	9g.cm
Motor weight	0.16kg
Insulation resistance	100MΩmin.(500V DC)
Insulation class	Class B

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

100mN.m Hybrid Stepper Motor 1.5A 3.83V Stepping Motor For CNC ATM Robot Arm 1

Please click the "Get a quote" button below to tell us your requirements.
