1.8 Degree Thin Stepper Motor NEMA 17 Flat Motor 100mN.m 424214mm With ISO CE ROHS

1.8 Degree Thin Stepper Motor NEMA 17 Flat Motor 100mN.m 424214mm With ISO CE ROHS

Nazwa marki:	Casun
Numer modelu:	42SHY4301-2A
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROSH,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

100mNm

Aktualny:

0,6A

Długość silnika:

14 mm

Wał:

Wał zębaty

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

1.8 Degree Thin Stepper Motor

NEMA 17 Flat Stepper Motor

100mN.m Thin Stepper Motor

Opis produktu

Permanent magnet stepper motors can achieve high acceleration and deceleration due to their small rotor inertia and fast response speed.

There are vulnerable parts such as electric brushes and commutators, so it has high reliability and lifespan.

Features:

Established in China for 12 years, serving over 800 clients
Hybrid stepper construction
Established in China for 12 years, serving over 800 clients
We provide tailored services and are open to contract manufacturing
Customizations on request

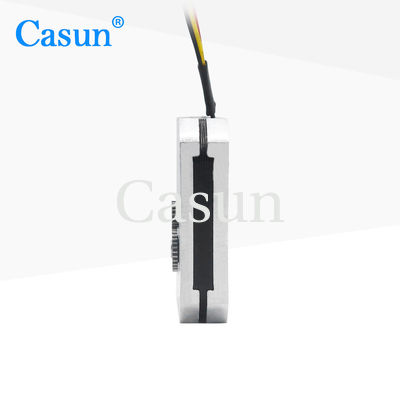

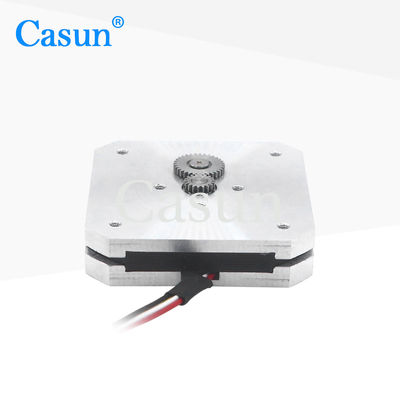

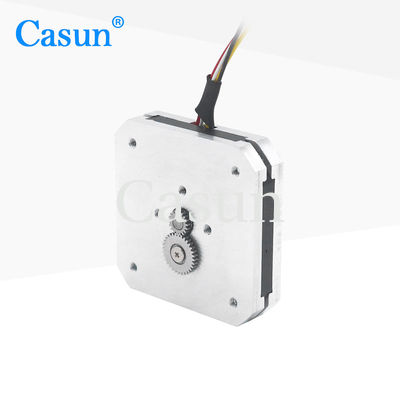

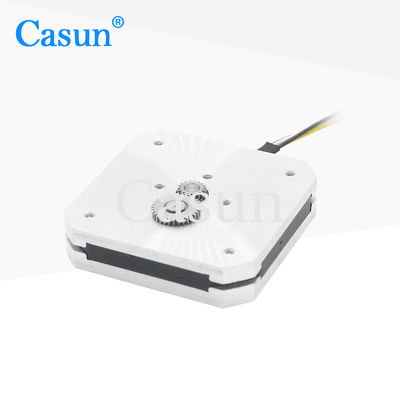

Appearance

1.8 Degree Thin Stepper Motor NEMA 17 Flat Motor 100mN.m 42*42*14mm With ISO CE ROHS 0

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	100 mN.m
Resistance	4.4 ohm
Inductance	2.5 mH
Rotor Inertia	15 g-cm²
Motor weight	0.08 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
