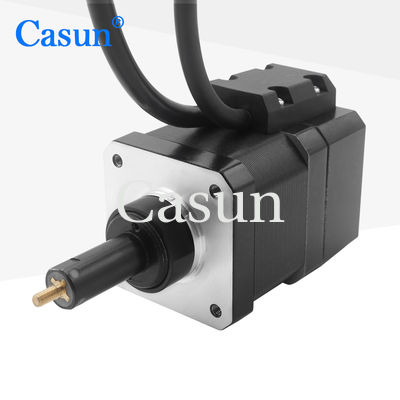

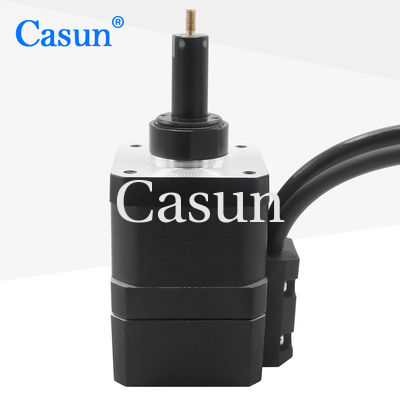

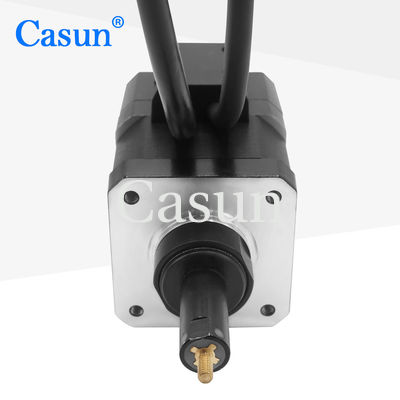

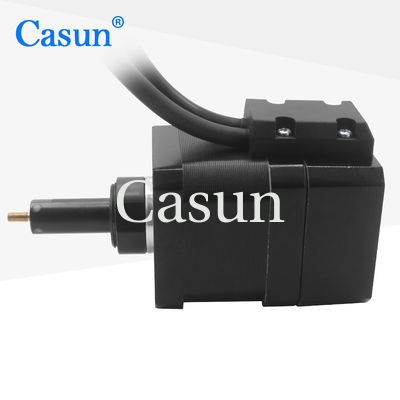

NEMA 17 Captive stroke 32mm 2.0A 42×42×34mm Stepper Motor for Precision machinery

NEMA 17 Captive stroke 32mm 2.0A 42×42×34mm Stepper Motor for Precision machinery

Nazwa marki:	Casun
Numer modelu:	42SHD4244-C32LQ
MOQ:	1 szt
Cena:	$26-$31
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

300mNm

Aktualny:

2,0A

Długość silnika:

34 MM

udar:

Długość 32mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 38x29x14m

Podkreślić:

42×42×34mm Captive Stepper Motor

2.0A Captive Stepper Motor

32mm Captive Stepper Motor

Opis produktu

Linear push rod stepper motors usually have standardized installation dimensions and are easy to install.

Linear push rod stepper motors are widely used in automation equipment, precision machinery, medical equipment, industrial robots, and other fields.

Features:

Bipolar or unipolar versions available
Established in China for 12 years and has served more than 800 customers
Professional drivetrain solution specialist
Contract-based manufacturing services are welcome
Every stepper motor model is adaptable to various applications

Appearance

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	34 mm
Number of Phase	2 Phase
Rated Current	2.0 A
minimal thrust	300mN.m
Resistance	4.5 ohm
Inductance	15 mH
Rotor Inertia	37 g.cm²
Motor weight	0.28 kg
Number of leads	4
Connection	Bipolar

Torque Curves

NEMA 17 Captive stroke 32mm 2.0A 42×42×34mm Stepper Motor for Precision machinery 2

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
