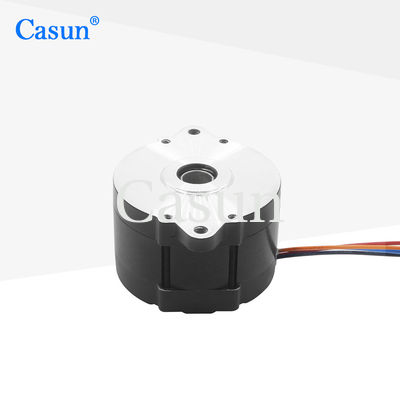

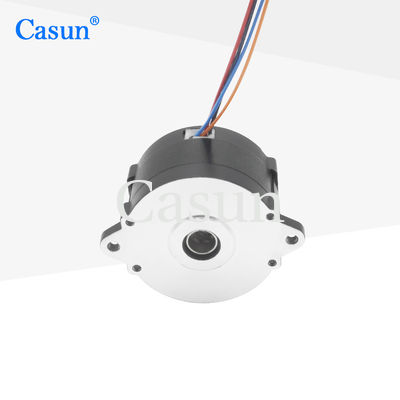

Pancake NEMA 16 Stepper Motor 26mm Body 0.5A 0.1N.m For Precise Instrument

Pancake NEMA 16 Stepper Motor 26mm Body 0.5A 0.1N.m For Precise Instrument

Nazwa marki:	Casun
Numer modelu:	39SHY4102-110TNH
MOQ:	1 szt
Cena:	$9.68-13.46
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Ciało:

26mm

Kąt kroku:

1,8°

Trzymanie momentu obrotowego:

100mNm

Liczba faz:

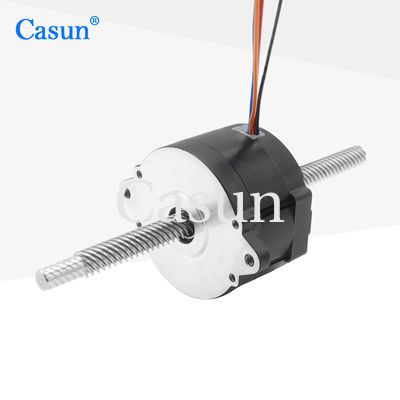

Wał wyjściowy:

Włókno śrubowe

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

0.5A Pancake NEMA 16 Stepper Motor

26mm Pancake NEMA 16 Stepper Motor

NEMA 16 Stepper Motor

Opis produktu

The flattened shape provides a larger surface area, which is beneficial for the heat dissipation of the motor, thereby improving its efficiency and lifespan.

Flat design helps reduce mechanical vibration, thereby lowering work noise.

Features:

Versions in unipolar or bipolar are offered
Ten-year warranty and purchase with confidence
Tailored solutions are our forte
Seasoned expert in drivetrain solutions
Looking for dealers! We provide custom services and contract manufacturing

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	39 mm
Number of Phase	2 Phase
Rated Current	0.5 A
Holding Torque	100 mN.m
Resistance	100MΩmin.
Inductance	6.5 mH
Rotor Inertia	15g.cm²
Motor weight	26mm
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Pancake NEMA 16 Stepper Motor 26mm Body 0.5A 0.1N.m For Precise Instrument 1

Please click the "Get a quote" button below to tell us your requirements.
