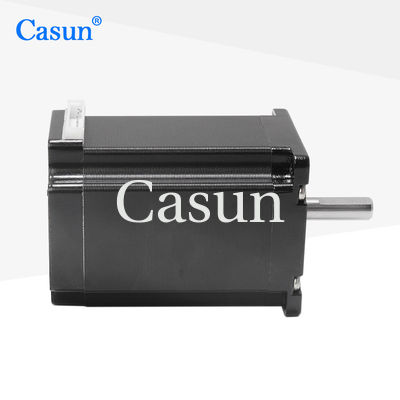

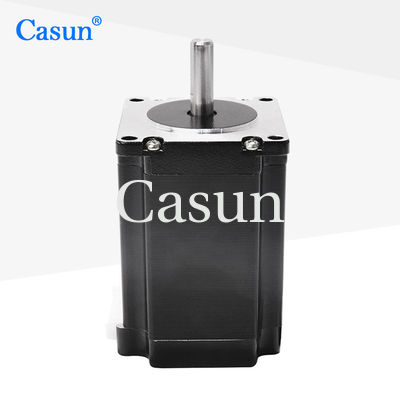

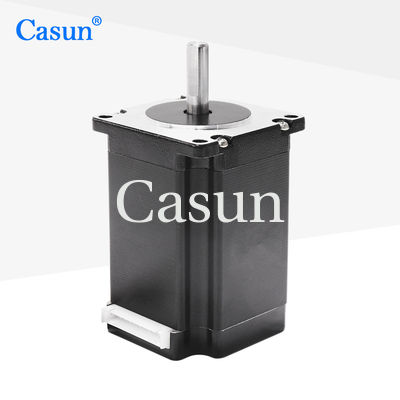

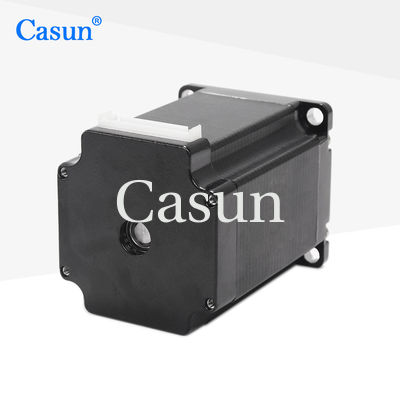

2 PHASE NEMA 23 STEPPING MOTOR 2.0A 1.6N.m With CE ROHS ISO

2 PHASE NEMA 23 STEPPING MOTOR 2.0A 1.6N.m With CE ROHS ISO

Nazwa marki:	Casun
Numer modelu:	57SHD0906-20BH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

1600mNm

Aktualny:

2,0A

Długość silnika:

82,8 mm

Wał:

Frezowanie płaskiego wału o długości 20 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

1.6N.m NEMA 23 STEPPING MOTOR

2 PHASE NEMA 23 STEPPING MOTOR

Opis produktu

NEMA 23 stepper motors have high speed capability, allowing for rapid rotation and positioning.

Very suitable for applications that require precise control and positioning, such as 3D printers, robots, etc.

Features:

High accuracy and torque
Enjoy a ten-year warranty and complete peace of mind
Boasting high torque and precision
Expertise in R&D and manufacturing
Established in China for 12 years, serving over 800 customers

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	4 Phase
Rated Current	2.0 A
Holding Torque	1600 mN.m
Resistance	2.5 ohm
Inductance	4.9 mH
Rotor Inertia	480 g-cm²
Motor weight	1.2 kg
Number of leads	4
Connection	Bipolar

Appearance

2 PHASE NEMA 23 STEPPING MOTOR 2.0A 1.6N.m With CE ROHS ISO 0

Dimensions

2 PHASE NEMA 23 STEPPING MOTOR 2.0A 1.6N.m With CE ROHS ISO 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
