Dual Shaft 1.8 Degree 4 Phase 1.26N.m DC NEMA 23 Hybrid Stepper Motor CNC Robot

Dual Shaft 1.8 Degree 4 Phase 1.26N.m DC NEMA 23 Hybrid Stepper Motor CNC Robot

Nazwa marki:	Casun
Numer modelu:	57SHD8409-21SH
MOQ:	1 szt
Cena:	$3.14-$5
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

1.26N.m.

Aktualny:

4,24A

Długość silnika:

56 mm

Wał:

Podwójny wał o długości 21 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

1.26N.m Dual Shaft Stepper Motor

CNC Robot Dual Shaft Stepper Motor

4 Phase Dual Shaft Stepper Motor

Opis produktu

It is possible to install loads at both ends of the motor simultaneously, which improves the compactness and flexibility of the system.

Suitable for various industries and fields, such as industrial automation, robotics, 3D printing, medical devices, etc.

Features:

High torque and high precision
Professional drivetrain solution specialist
With 12 years of experience in China, we have served over 800 customers
Ten-year warranty, buy with confidence
Provide "multiple international certifications" for high-tech industry and electronic industry equipment

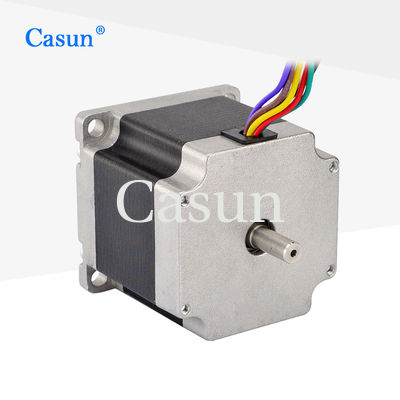

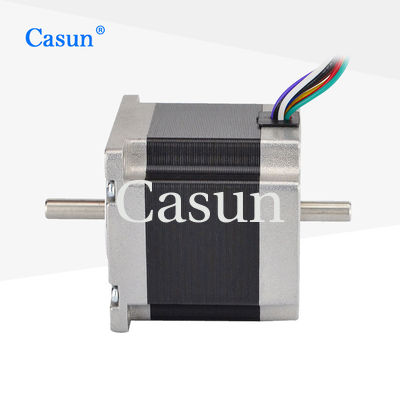

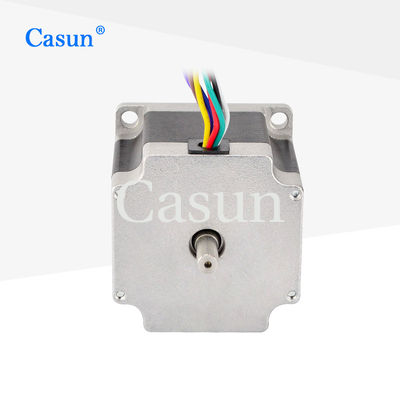

Appearance

Dual Shaft 1.8 Degree 4 Phase 1.26N.m DC NEMA 23 Hybrid Stepper Motor CNC Robot 0

Dimensions

Dual Shaft 1.8 Degree 4 Phase 1.26N.m DC NEMA 23 Hybrid Stepper Motor CNC Robot 1

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	4 Phase
Rated Current	4.24 A
Holding Torque	1.26 N.m
Resistance	0.375 ohm
Inductance	1.1 mH
Rotor Inertia	300 g-cm²
Motor weight	0.7 kg
Number of leads	8
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
