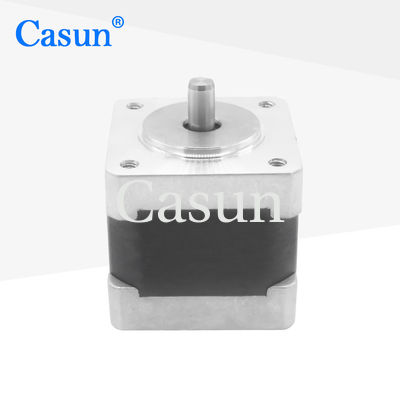

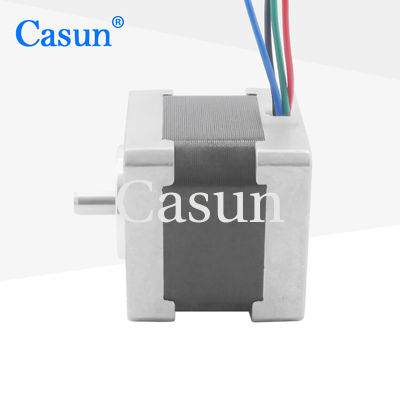

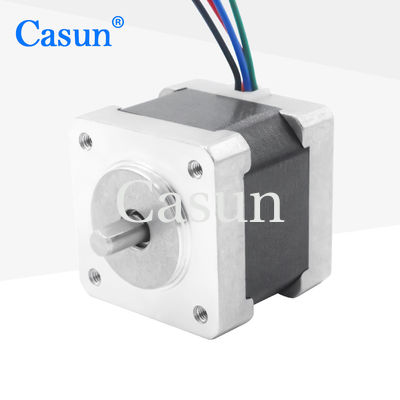

Casun Nema 14 High Precision 155mN.m Hybrid Stepper Motor For Medical Machine

Casun Nema 14 High Precision 155mN.m Hybrid Stepper Motor For Medical Machine

Nazwa marki:	Casun
Numer modelu:	35SHD4103-10B
MOQ:	1 szt
Cena:	$3.88~$4.6
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Faza:

Klasa izolacji:

Klasa B

Rezystancja fazowa:

3,8 omów

Aktualny:

Woltaż:

3,8 V

Długość ciała:

34 mm

Trzymanie momentu obrotowego:

155 mNm

Waga:

0,2 kg

Długość wału:

10 mm

Szczegóły pakowania:

Karton: 38x29x18cm

Podkreślić:

155mN.m Nema 14 Stepper Motor

Stepper Motor for Medical Machine

High Precision Nema 14 Stepper Motor

Opis produktu

Casun Nema 14 High Precision 155 mN.m Factory Prices Hybrid Stepper Motor for Medical Machine

The Casun Nema 14 High Precision Stepper Motor offers 155 mN.m torque at competitive factory prices, perfect for medical machines requiring reliable and precise motion control. Featuring hybrid stepper technology, it ensures smooth operation, high accuracy, and durability in critical medical applications. Compact, cost-effective, and built for performance.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Casun Nema 14 High Precision 155mN.m Hybrid Stepper Motor For Medical Machine 0

Motor Specifications

Step Angel	1.8°
Frame Size	34 mm
Number of Phase	2 Phase
Rated Current	1 Amp
Holding Torque	155 mN.m
Resistance	3.8 ohm
Inductance	5.8 mH
Rotor Inertia	14 g.cm²
Motor weight	0.18 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
35SHD0307	80 mN.m	1.8°	20 mm	D Shaft-20mm	0.4 A
35SHD0001	100 mN.m	1.8°	26 mm	D Shaft-20mm	0.4 A
35SHD0102	150 mN.m	1.8°	34 mm	D Shaft-20mm	0.75 A
35SHD0801	230 mN.m	1.8°	40 mm	D Shaft-24mm	0.5 A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 14 High Precision 155mN.m Hybrid Stepper Motor For Medical Machine 1

Please click the "Get a quote" button below to tell us your requirements.
