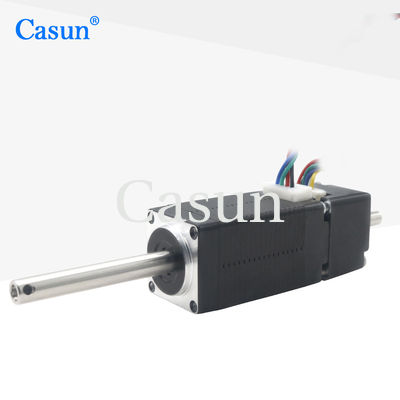

Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight

Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight

Nazwa marki:	Casun
Numer modelu:	20SHD4255-3SKQ
MOQ:	1 szt
Cena:	$35~$41.77
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Faza:

Klasa izolacji:

Klasa B

Rezystancja fazowa:

12 omów ± 10% (przy 20ssd)

Aktualny:

0,6A

Woltaż:

7,5 V

Długość ciała:

38 mm

Trzymanie momentu obrotowego:

40 mNm

Waga:

0,08 kg

Długość wału:

36 mm

Szczegóły pakowania:

Karton: 38x29x18cm

Podkreślić:

Light weight Nema 8 Stepper Motor

0.6Amp Nema 8 Stepper Motor

40mN.m Nema 8 Stepper Motor

Opis produktu

Casun Nema 8 Special Shaft Stepper Motor with Encoder mN.m 0.6 Amp Lightweight

The Casun Nema 8 Special Shaft Stepper Motor features a high-torque 40mN.m output with low power consumption (0.6A), integrated encoder for precise control, and a lightweight design for compact applications. Ideal for automation, robotics, and precision motion systems requiring reliable performance in a small form factor.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single- or double-shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight 0

Motor Specifications

Step Angel	1.8°
Frame Size	38 mm
Number of Phase	2 Phase
Rated Current	0.6 Amp
Holding Torque	40 mN.m
Resistance	12.5 ohm
Inductance	5.5 mH
Rotor Inertia	3.8 g.cm²
Motor weight	0.08 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight 2

Please click the "Get a quote" button below to tell us your requirements.
