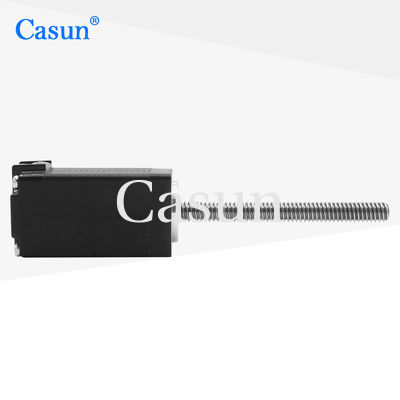

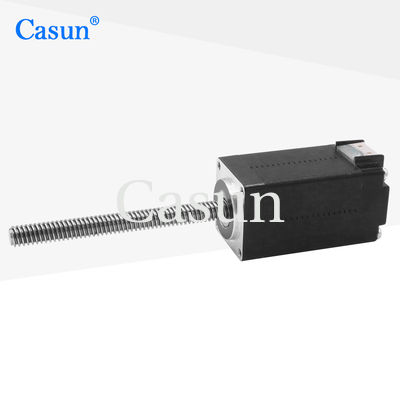

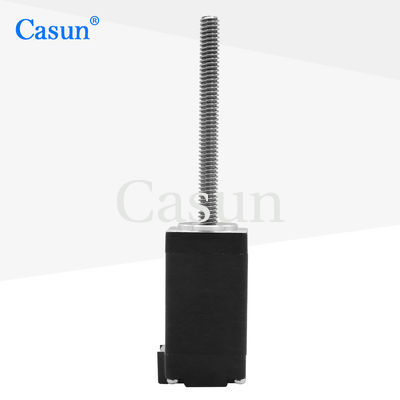

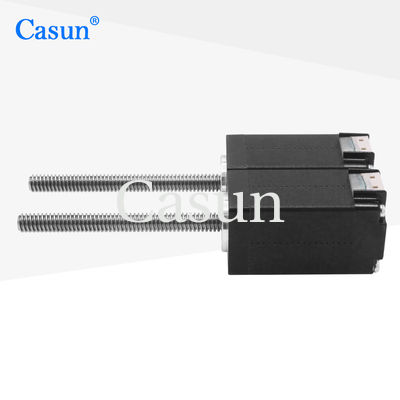

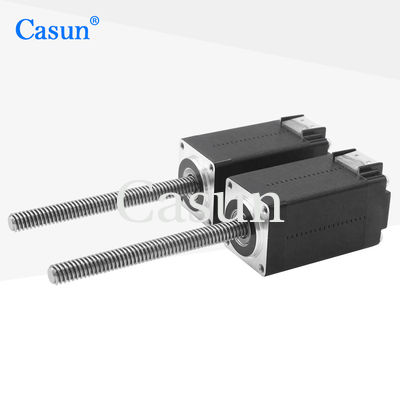

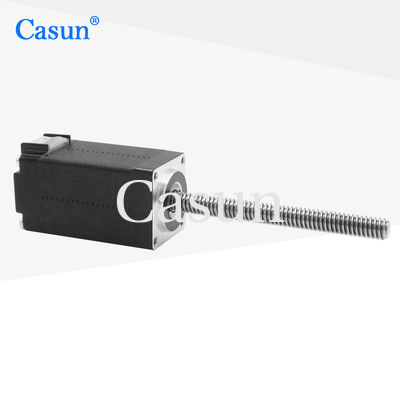

Casun Nema 8 Lead Screw Stepper Motor Tr5X2 P1 5.4V 38mm Body High Precision 32mN.m for Beauty Equipment

Nazwa marki:	Casun
Numer modelu:	20SHD0250-52NTV2
MOQ:	5 szt
Cena:	$17.59~$18.91
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	10000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Trzymanie momentu obrotowego:

32 mNm

Woltaż:

5,4 V

Aktualny:

0,6A

Długość ciała:

38 mm

Waga:

0,08 kg

Rezystancja fazowa:

9 omów ±10% (przy 20 ℃)

Długość wału:

52 mm

Faza:

Klasa izolacji:

Klasa B

Szczegóły pakowania:

Karton: 38x29x18cm

Podkreślić:

38mm Body Nema 8 Stepper Motor

32mN.m Nema 8 Stepper Motor

Lead Screw Nema 8 Stepper Motor

Opis produktu

Casun Nema 8 Lead Screw Stepper Motor Tr5X2(P1) 5.4V 38mm Body High Precision 32mN.m for Beauty Equipment

The Casun Nema 8 Lead Screw Stepper Motor features an integrated TR5×2 (P1) threaded shaft, delivering precise linear motion in a remarkably compact 38mm body. Designed specifically for beauty and aesthetic equipment, this high-precision motor combines 32mN.m torque with smooth, reliable performance for delicate applications.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single- or double-shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Casun Nema 8 Lead Screw Stepper Motor Tr5X2 P1 5.4V 38mm Body High Precision 32mN.m for Beauty Equipment 0

Motor Specifications

Step Angel	1.8°
Frame Size	38 mm
Number of Phase	2 Phase
Rated Current	0.6 Amp
Holding Torque	32 mN.m
Resistance	9 ohm
Inductance	3.2 mH
Rotor Inertia	3.5 g.cm²
Motor weight	0.08 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Casun Nema 8 Lead Screw Stepper Motor Tr5X2 P1 5.4V 38mm Body High Precision 32mN.m for Beauty Equipment 1

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 8 Lead Screw Stepper Motor Tr5X2 P1 5.4V 38mm Body High Precision 32mN.m for Beauty Equipment 2

Please click the "Get a quote" button below to tell us your requirements.
