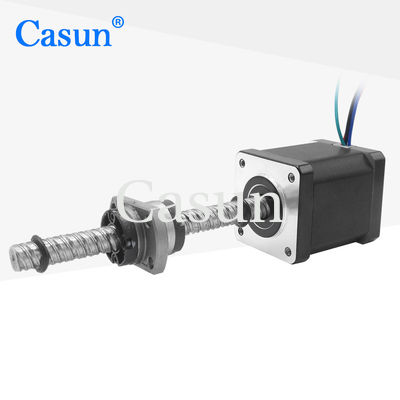

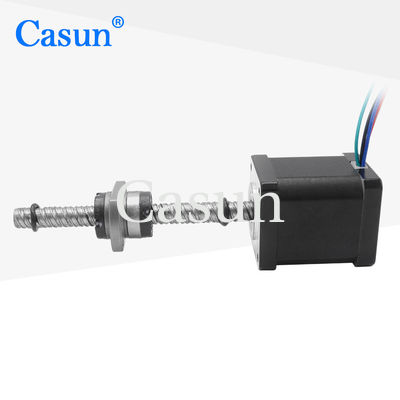

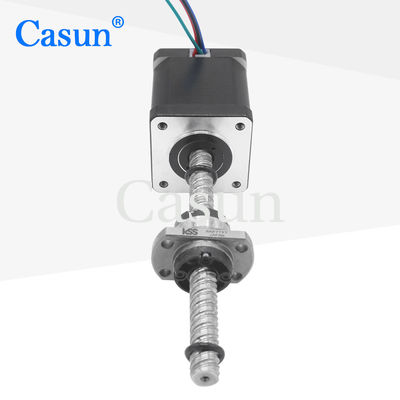

4.05V 1.5A 1.8 Degree 2 Phase NEMA 14 Linear Stepper Motor 35x35mm Ball Screw

4.05V 1.5A 1.8 Degree 2 Phase NEMA 14 Linear Stepper Motor 35x35mm Ball Screw

Nazwa marki:	Casun
Numer modelu:	P35SHD4860-90GKH
MOQ:	1 szt
Cena:	$4.14-$6.98
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Krok anioła:

1,8°

Trzymanie momentu obrotowego:

360mNm

Aktualny:

1,5a

Długość silnika:

46 mm

Wał:

Wał śruby kulowej o długości 90 mm

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

1.5A NEMA 14 Linear Stepper Motor

4.05V NEMA 14 Linear Stepper Motor

Opis produktu

The ball guiding structure can provide smooth motion and lower friction loss, thereby improving the stability and reliability of the system.

It can achieve high speed and is suitable for applications that require fast linear motion.

Features:

Specializing in tailor-made services is our expertise
Hybrid stepper construction
Having operated in China for 12 years, we have served over 800 customers
CE and RoHS approved
Your purchase comes with a ten-year warranty, ensuring confidence

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	360 mN.m
Resistance	2.7 ohm
Inductance	3.2 mH
Rotor Inertia	35 g-cm²
Motor weight	0.35 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
