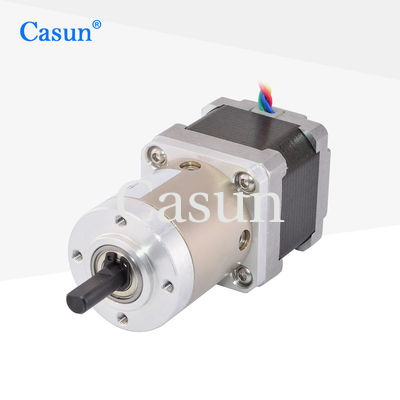

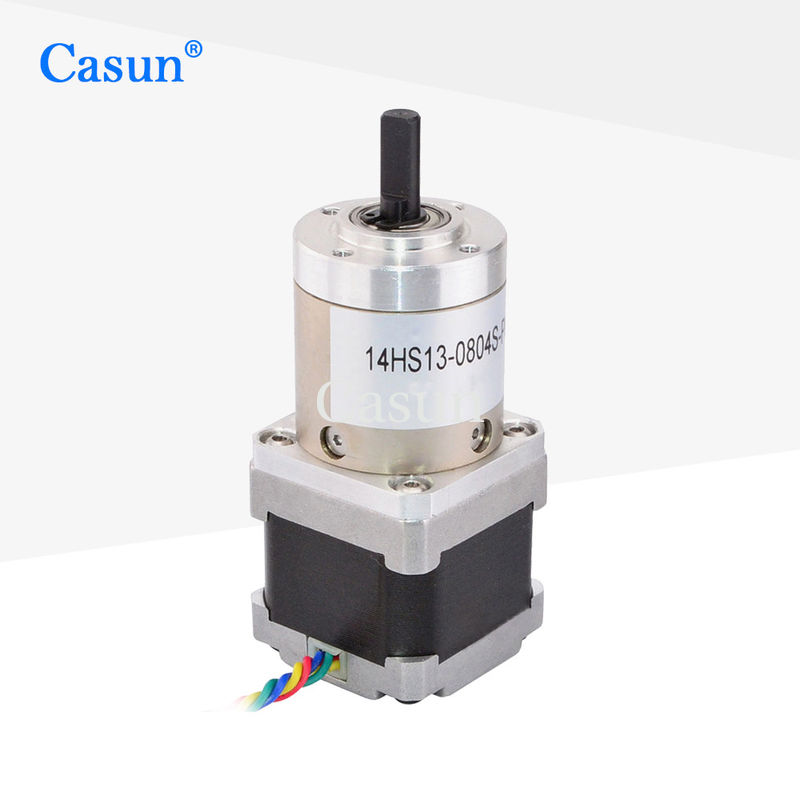

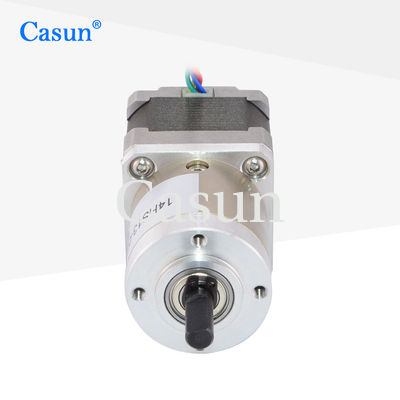

180 MNm NEMA 14 Geared Stepper Motor Planetary Gear Reducer Motor

180 MNm NEMA 14 Geared Stepper Motor Planetary Gear Reducer Motor

Nazwa marki:	Casun
Numer modelu:	P35SHD4118-19G
MOQ:	1 szt
Cena:	$18.9-$24
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Współczynnik przekładni:

1:19,2

Trzymanie momentu obrotowego:

180mNm

Drut ołowiany:

4 przewody

Prąd znamionowy:

1,0 A

Kąt kroku:

1,8°

Waga:

0,36 kg

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 38x29x18cm

Podkreślić:

Planetary Gear Reducer Motor

180 mNm NEMA 14 Stepper Motor

NEMA 14 Planetary Gear Reducer Motor

Opis produktu

The control method of the 42 deceleration stepper motor is relatively simple and can be controlled by adjusting current or pulse signals, etc

It has multiple protection mechanisms such as overload protection and overheating protection, which can ensure the safe operation of the equipment.

Features:

Bipolar or unipolar versions available
Deliver "multiple international certifications" for electrical and high-tech devices.
Available in single or double shaft versions
Within 48 hours, one of our engineers will contact you with the best option.
"Multiple international certifications" are required.

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	180 mN.m
Resistance	6.8 hm
Inductance	10 mH
Rotor Inertia	180 g-cm²
Motor weight	0.4 kg
Gear Reduction Ratio	19.2:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal

Bearing at Output:Ball Bearings

Max.Radial Load(12mm from flange):≤80N

Max.Shaft Axial Load:≤30N

Radial Play of Shaft (near to Flange):≤0.06m

Axial Play of Shaft:≤0.3mm

Backlash at No-load:≤1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
26 mm 34 mm 40 mm	29.1 mm	3.71	90%
		5.18
	36.8 mm	13.76	80%
		19.2
		26.8
	44.6 mm	51	70%
		71
		99.5
		139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

180 MNm NEMA 14 Geared Stepper Motor Planetary Gear Reducer Motor 1

Please click the "Get a quote" button below to tell us your requirements.
