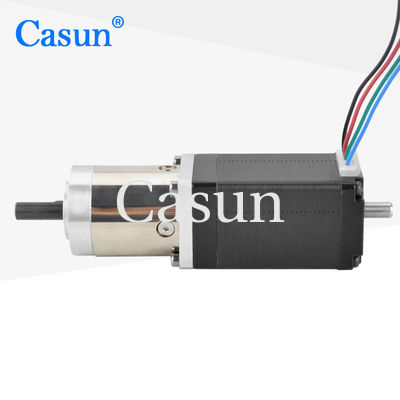

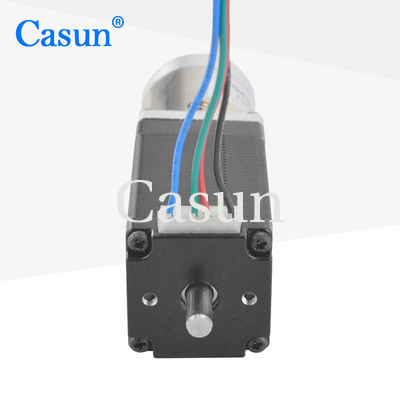

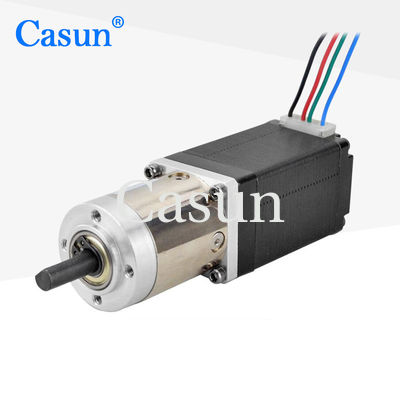

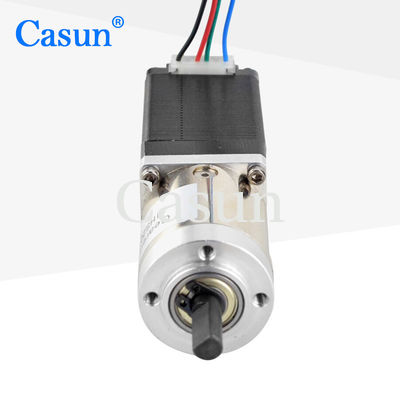

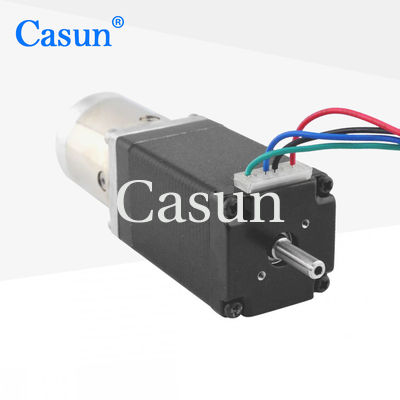

Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot

Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot

Nazwa marki:	Casun
Numer modelu:	28SHD4301-19G
MOQ:	1 szt
Cena:	$24-$35
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Silnik krokowy:

NEMA11

Faza:

Trzymanie momentu obrotowego:

100mNm

Napięcie znamionowe:

2,6 V

Prąd prąd:

0,95A

Rezystancja fazowa:

3,8 Ohma

Waga:

0,25

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

NEMA 11 Geared Stepper Motor

0.67A Geared Stepper Motor

Open Source Robot Geared Stepper Motor

Opis produktu

CASUN Stufe stufe 28*28*40.5mm NEMA 11 Geared Stepper Motor 0.95A stepping motor 3.6V AR3 Open-Source Robot

Planetary Gearbox with 28*28*40.5mm Casun 0.95A Nema 11 Stepper Motor

Micro Geared Stepper Motor with Planetary Gearbox and Small Gear Stepper Motor 28*28*40.5mm NEMA 11

In a range of sizes, the 28mm Hybrid Stepper Motor Series provides strong holding torque.

To lessen vibration and achieve a greater step resolution, use with a microstepping driver.

Select a standard version or ask for a specially configured version.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	28 mm
Number of Phase	2 Phase
Rated Current	0.95 A
Holding Torque	100mN.m
Resistance	3.8 om
Inductance	2 mH
Rotor Inertia	12g-cm²
Motor weight	0.25kg
Gear Reduction Ratio	19:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm	3.71	90%
		5.18
	35 mm	13.76	80%
		19.2
		26.8
	42.7 mm	51	70%
		71
		99.5
		139

Download

If our basic motor is unable to satisfy your needs, we can modify the motor to do so.

Special shafts, winding parameters, installation measurements, lead wires with unique specifications, connections, etc. are only a few examples of customized content.

Options:
Encoder | Brake | Gearbox | Shaft

Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot 1

Please click the "Get a quote" button below to tell us your requirements.
