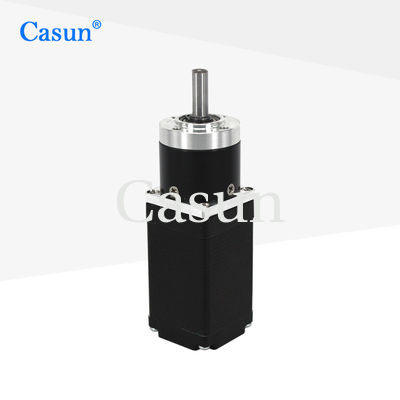

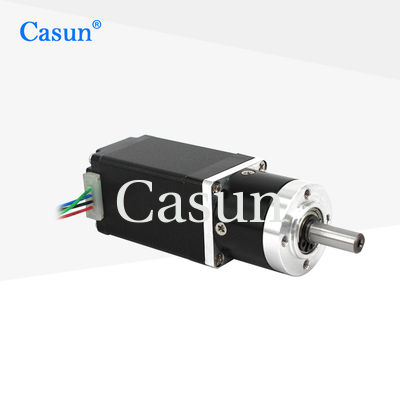

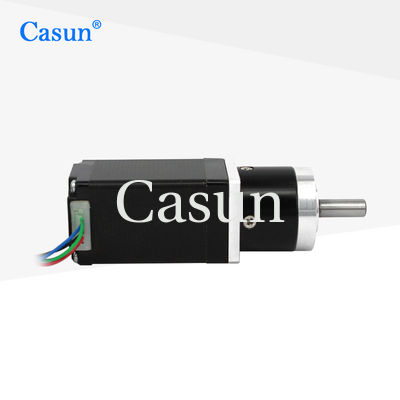

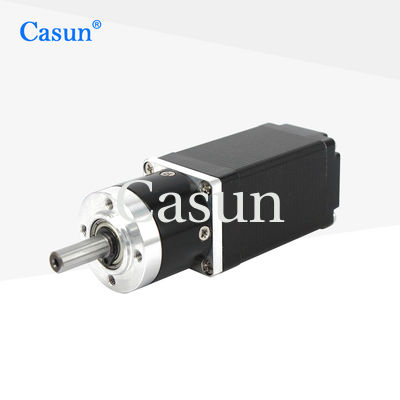

0.67A Nema 11 High Precision Gearbox Stepper Motor 55mN.M For Coordinate Measuring Instrument

0.67A Nema 11 High Precision Gearbox Stepper Motor 55mN.M For Coordinate Measuring Instrument

Nazwa marki:	Casun
Numer modelu:	28SHD4111-5G
MOQ:	1 szt
Cena:	$16-$25
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Silnik krokowy:

NEMA11

Faza:

Trzymanie momentu obrotowego:

55mNm

Napięcie znamionowe:

6,12 V

Prąd prąd:

0,67A

Waga:

0,2 kg

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

Nema 11 Gearbox Stepper Motor

Gearbox Stepper Motor 55mN.M

Opis produktu

Casun 0.67A Nema 11 High Precision Gearbox Stepper Motor 55mN.M Stepping Motors For Coordinate Measuring Instrument

28*28*27.5mm Casun 0.67A Nema 11 6.12V Geared Stepper Motor with Planetary Gearbox

Small Gear Stepper Motor 28*28*27.5mm Micro Geared Stepper Motor with Planetary Gearbox NEMA 11

The 28mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	28 mm
Number of Phase	2 Phase
Rated Current	0.67 A
Holding Torque	55mN.m
Resistance	9.2Ohm
Inductance	5.7 mH
Rotor Inertia	9.2g-cm²
Motor weight	0.2kg
Gear Reduction Ratio	5.18:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm	3.71	90%
		5.18
	35 mm	13.76	80%
		19.2
		26.8
	42.7 mm	51	70%
		71
		99.5
		139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

0.67A Nema 11 High Precision Gearbox Stepper Motor 55mN.M For Coordinate Measuring Instrument 1

Please click the "Get a quote" button below to tell us your requirements.
