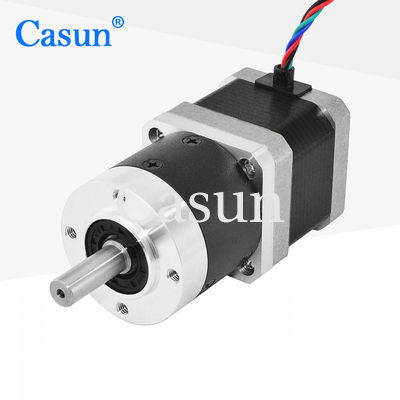

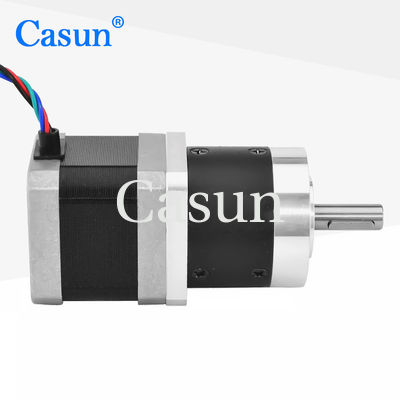

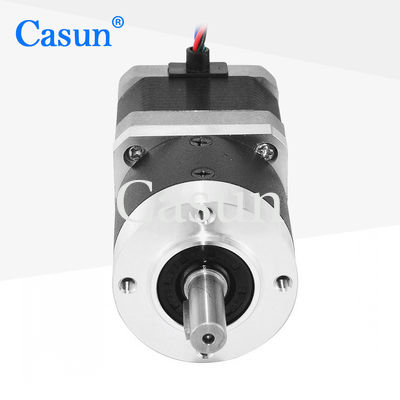

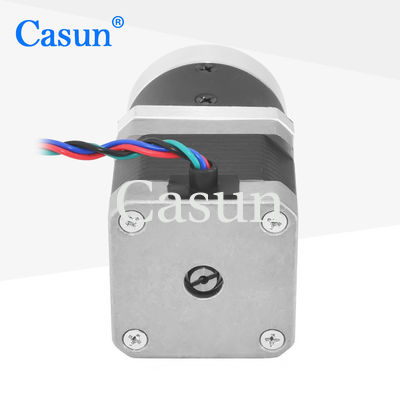

1.68A NEMA 17 Planetary Gearbox Stepper Motor 10:1 17HS15-1684S-HG10

1.68A NEMA 17 Planetary Gearbox Stepper Motor 10:1 17HS15-1684S-HG10

Nazwa marki:	Casun
Numer modelu:	42SHD4229-10PLH
MOQ:	1 szt
Cena:	$23.3-$26.3
Warunki płatności:	D/A, T/T, L/C, D/P
Możliwość zaopatrzenia:	40000+szt.+miesiąc

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE,ROHS,ISO

Ciało:

48 mm

Kąt kroku (stopnie):

1,8 stopnia

Współczynnik redukcji:

10:1

Aktualny:

1,68A

Dostosowane:

Silnik można zaprojektować i wyprodukować na zamówienie.

Szczegóły pakowania:

Karton: 36x29x14cm

Podkreślić:

Planetary Gearbox Stepper Motor

NEMA 17 Gearbox Stepper Motor

Opis produktu

1.68A NEMA 17 Planetary Gearbox Stepper Motor 10:1 17HS15-1684S-HG10

The NEMA 17 planetary reduction stepper motor has smoother operating characteristics, reducing noise and vibration.

Has lower rotational clearance and higher repeat positioning accuracy.

Features:

Bipolar or unipolar versions available
We offer tailored services and invite contract manufacturing
Providing "a wide range of international certifications" for high-tech and electronic industry equipment
Professional drivetrain solution specialist
Each stepper motor model is suitable for various scenarios

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	390 mN.m
Resistance	1.65 ohm
Inductance	3.2 mH
Rotor Inertia	57 g-cm²
Motor weight	0.9kg
Gear Reduction Ratio	10:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm	3.71	90%
		5.18
	35 mm	13.76	80%
		19.2
		26.8
	42.7 mm	51	70%
		71
		99.5
		139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

1.68A NEMA 17 Planetary Gearbox Stepper Motor 10:1 17HS15-1684S-HG10 1

Please click the "Get a quote" button below to tell us your requirements.
